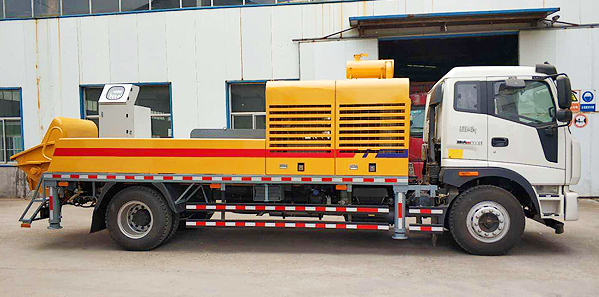

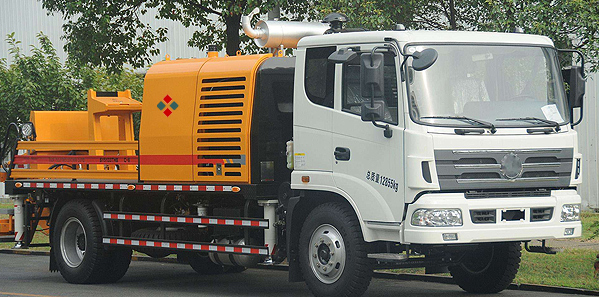

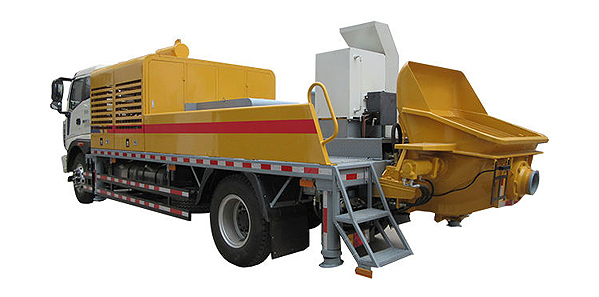

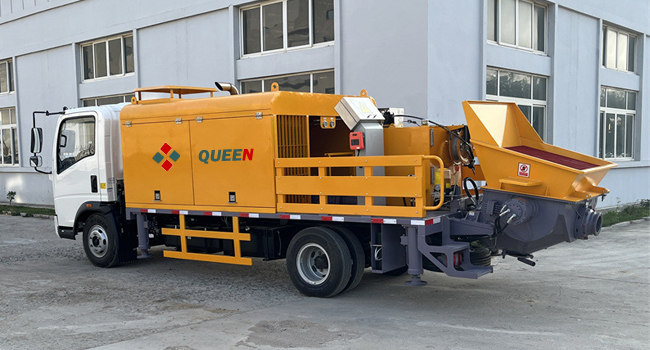

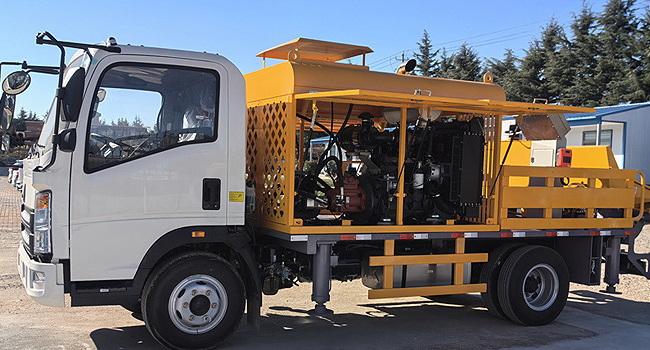

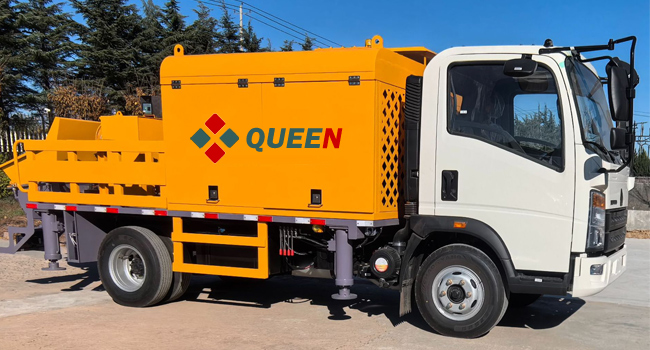

Concrete Line Pump

As infrastructure development accelerates and construction demands rise, the performance of concrete delivery equipment is crucial to project success. Queen Machinery's new truck-mounted concrete line pump, with its efficient, stable, and intelligent upgrades, powers modern engineering projects.

The working principle of a truck-mounted concrete line pump is essentially the same as that of a trailer-mounted pump. It works by having the engine drive a hydraulic pump to generate pressurized oil, which drives two main hydraulic cylinders to move the pistons in the two concrete delivery cylinders in a reciprocating motion. Through the coordinated action between the S-valve and the main cylinders, concrete is continuously drawn into the delivery cylinders from the hopper and pumped through the delivery pipeline to the construction site.



1. Chassis versatility: Typically uses chassis from trucks like Dongfeng, ensuring ease of maintenance and long service life.
2. Independent control of four hydraulic outriggers: This ensures the stability of the vehicle during operation.

1. Changes the traditional pouring method, ensuring standardized operation, reliable safety, and a wide range of applications.
2. Simple operation, with one person able to operate the entire machine, solving labor shortages, reducing physical strain, and saving manpower.
3. Get rich, construction efficiency 4 to 5 times, cost-effective, short cycle to recover costs.
4. Precision manufacturing in the factory, combining economy, reliability, safety, and durability.
5. Professional after-sales team.

ITEM			UNIT	SPECIFICATION
Model				QM5141THB
Driving System	Chassis Brand			FOTON DAIMLER, Left Drive
	Chassis Model			BJ1113VFPHG-RA
	Fuel Type			Diesel
	Displacement/Power		L/KW	6.7/156
	Displacement Standard			Euro III
	Tyre Model			8.25R20
	Axle Base		M	5.0
	Quantity Of Axles			2
	Max. Driving Speed		Km/H	90
	Front Wheel Base		Mm	1900
	Back Wheel Base		Mm	1800
	Min. Turning Radius		M	9
Pumping System	Brand Of Diesel Engine			DEUTZ Brand
	Diesel Engine Model			BF6M1013-25T3R
	Diesel Engine Power		KW	186
	Driving Mode			Hydraulic Driving
	Oil Cylinder Inner Diameter × Stroke		Mm	Ф180×Ф125×1800
	Concrete Cylinder Inner Diameter × Stroke		Mm	Ф230×1800
	Oil Pressure Of System		MPa	32
	Switch Of H-Pressure And L-Pressure			Equipped
	Fuel Tank Capacity		L	290
	Oil Tank Capacity		L	600
	Cooling Mode Of Hydraulic System			Fan Cooling
	Max. Theoretical Capacity		M3/H	H-Pressure	55
			M3/H	L-Pressure	100
	Pumping Distance (H-Pressure)	Max. Horizontal	M	125A Pipe	880
		Max. Vertical	M	125A Pipe	220
	Hopper Capacity		M3	0.6
	Feeding Height		Mm	≤1500
	Concrete Slump		Cm	14～23
	Max. Aggregate Diameter		Mm	Crushed Stone: 40 / Pebble: 50
	Valve			S Valve
	Water Pump For Cleaning			Equipped
	Concrete Pipe Cleaning Mode			Water Cleaning
	Water Tank Capacity		L	400
	Lubrication Mode			Automatic
Overall Dimension	Length (Mm)*Width (Mm)*Height (Mm)		Mm	9195*2458*2623
Full-Load Total Weight			Kg	13500
