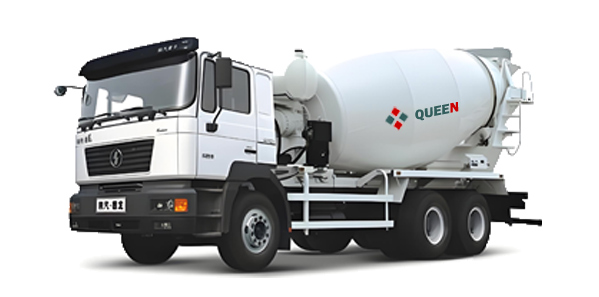

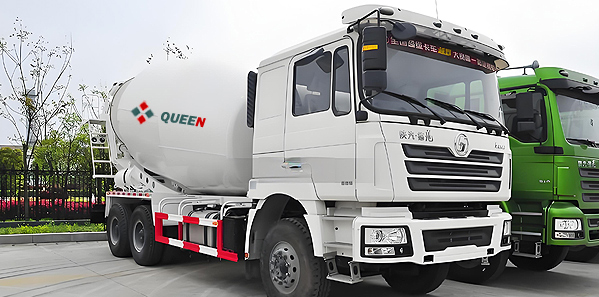

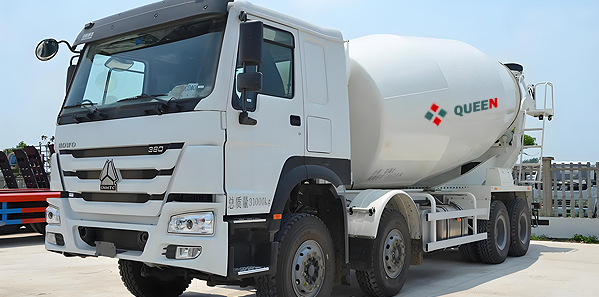

Concrete Mixer Truck

The concrete mixer truck is a specialized vehicle that integrates mixing and transportation, with the mixing drum rotating throughout the transportation process. It is suitable for underground coal mines, land reclamation projects, high-speed rail construction, urban road construction, and rural housing construction. Main specifications: 4m³, 6m³, 8m³, 10m³, 12m³, etc.

1.The tank body follows the European and American pear-shaped style, and the vehicle has a unique and beautiful appearance.
2.The chassis selects the special mixer truck chassis of various domestic and foreign manufacturers..
3.The structure is compact and reasonable, and the performance of the whole vehicle is excellent.
4.Our mixer truck is deeply loved by users for its advantages of “light weight, low center of gravity, fast discharging, and long service life”.

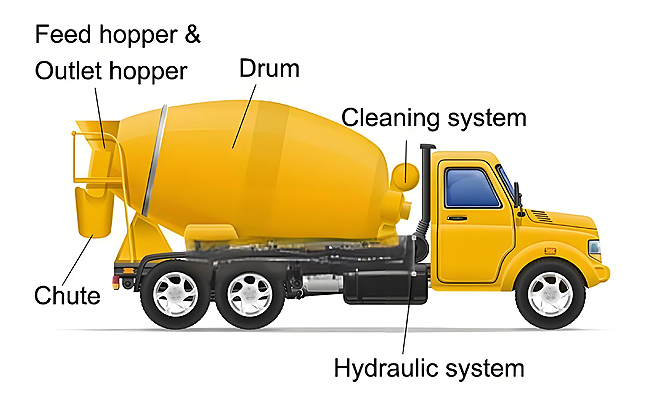

Hydraulic system: famous brand Sunny, the structure is simple and reliable.
Water supply system: It supplies water by pressure, which saves the labor intensity and reduces the car weight.
Mixing drum: It is pear shaped and has dual helical blades, which improves the concrete quality; The installing angle of the drum is small, which reduces the vehicle center of gravity and is conducive to the clean discharge of the concrete.
Control device: It can be divided into soft shaft manipulator and link manipulator, which can achieve the multiple points charging and discharging control; the charging hopper and discharging chute can rotate 180 degree in the horizontal direction to adapt to different position.

Item	Details	4m3	6m3	8m3	10m3	12m3
Chassis	model/Brand/Origin	(YUEJIN, WAW, FORLAND ETC)	HOHAN, CDW	SHACMAN, HOWO
	Chassis-driven model	4×2	4*2	4*6	4*6	4*8
Mixing drum	Agitating capacity (m3 )	4.9	6.0	8.0	10.0	12.0
	Residual rate (%)	≤0.5%
	Feeding rate (m3/ min )	≥3
	Charging rate (m3/ min )	≥2
	Inclination angle of  drum	15 (Customized)
Hydraulic System	Pump model/brand	SUNNY	SUNNY	ARK	ARK	ARK
	Motor model/brand	SUNNY	SUNNY	ARK	ARK	ARK
	Reduction gear	RONGJIAO	RONGJIAO	TOP	TOP	TOP
