The mining dump truck is a heavy-duty transport vehicle specifically designed for mining environments. It is mainly used for short-distance transport of ores, waste rocks, and other materials. These trucks play a key role in the mining process, acting as an essential link between excavation work and the mineral processing area. We produce two types of mining dump trucks: wheeled dump truck and tracked dump truck(or crawler dump truck). The payload capacities range from 1 to 45 tons, suitable for different mining and construction requirements.
-

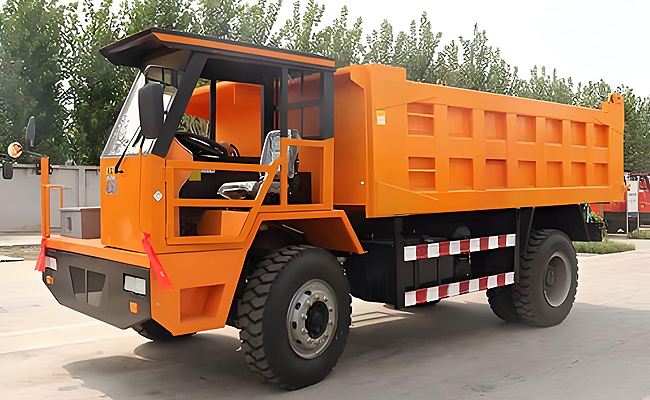

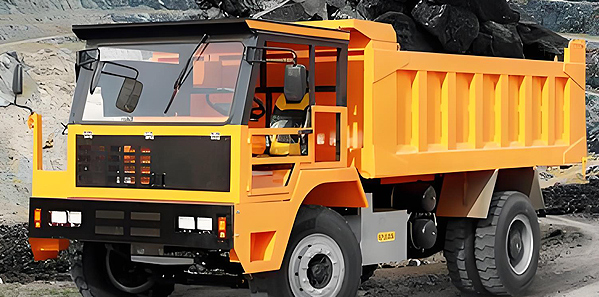

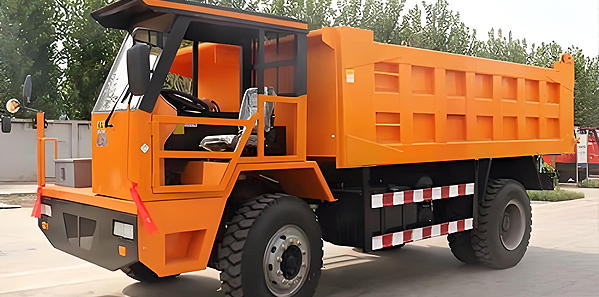

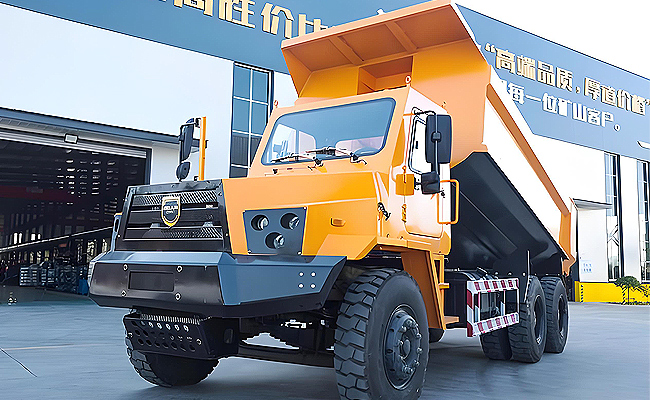

- Wheeled Dump Truck
-

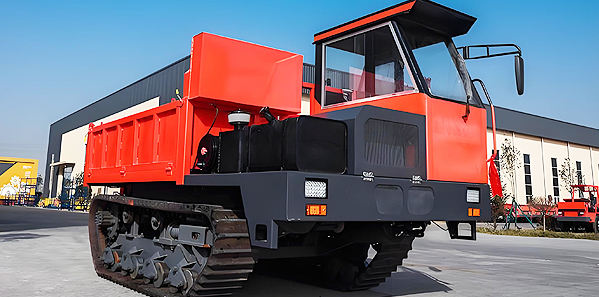

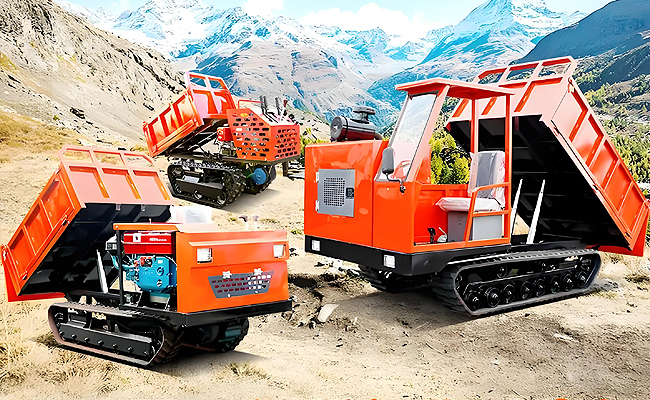

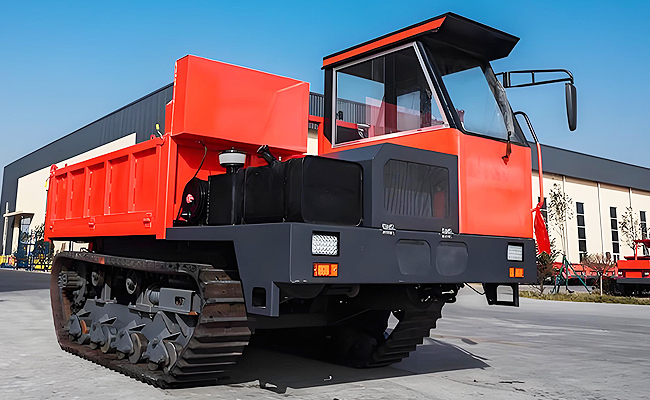

- Tracked Dump Truck
01 Features of Mining Dump Truck
BackThe design of Mining Dump Trucks is tailored for mining conditions. Built with high-strength steel, they withstand tough roads and heavy loads. The chassis offers great stability and ground clearance, ensuring safe operation on rugged terrain. Powerful engines maintain stable speed, even under heavy loads.
02 Specifications of the Mining Dump Truck
Back
Wheeled Dump Truck Specifications
| Payload Capacity: 3.5 Tons | Payload Capacity: 5 Tons |
|---|---|
| Engine: Changchai 490, 63 HP Transmission: Nanjing 130 with High/Low Speed Axle: Front Isuzu / Rear Isuzu Tires: 700-16 Kunlun Mining Steel-Belt (Rear Single) Overall Dimensions (L*W*H): 4*1.5*1.3 m |
Engine: Changchai 490, 63 HP Transmission: Dongfeng 145 “Xiaofei” Front-Mounted, High/Low Speed Axle: Front 1069 / Rear 1069 Tires: 700-16 Kunlun Mining Steel-Belt (Rear Dual) Overall Dimensions (L*W*H): 4*1.65*1.55 m |
| Payload Capacity: 7 Tons | Payload Capacity: 10 Tons |
| Engine: Yunnei 4102, 95 HP Transmission: Dongfeng 145 “Dafei” Front-Mounted, High/Low Speed Axle: Front 1098 / Rear 1098 Tires: 750-16 Kunlun Mining Steel-Belt (Rear Dual) Overall Dimensions (L*W*H): 4.6*1.8*1.6 m |
Engine: Yunnei 4102, 95 HP Transmission: Dongfeng 145 “Dafei” Front-Mounted, High/Low Speed Axle: Front 1098 / Rear 1098 Tires: 750-16 Kunlun Mining Steel-Belt (Rear Dual) Overall Dimensions (L*W*H): 4.6*1.8*1.6 m |
| Payload Capacity: 12 Tons | Payload Capacity: 12 Tons(plus) |
| Engine: Yuchai 4102 Turbo, 110 HP Transmission: Wanliyang 545 Rear-Mounted, High/Low Speed Axle: Front 1098 / Rear 1098 Tires: 750-16 Kunlun Mining Steel-Belt (Rear Dual) Overall Dimensions (L*W*H): 5*1.8*1.7m |
Engine: Yuchai 4105 Turbo, 123 HP Transmission: Wanliyang 545 Rear-Mounted, High/Low Speed Axle: Front 1098 / 1098D with 153 Final Reduction (Rear 1098) Tires: 825-16 Kunlun Mining Steel-Belt (Rear Dual) Overall Dimensions (L*W*H): 5.1*2*1.8 m |
| Payload Capacity: 15 Tons | Payload Capacity: 20 Tons(Flat-Nose) |
| Engine: Yuchai 4108 Intercooled Turbo, 160 HP Transmission: 10JS90 Axle: Front 153 (10 Bolt) / Rear 153 (10 Bolt) Tires: 900-20 Kunlun Mining Steel-Belt Overall Dimensions (L*W*H): 5.6*2.3*2 m |
Engine: Yuchai 260 HP Transmission: Fast 10JS120 Axle: Steyr Front 7-Ton Heavy-Duty Tires: 1000R20 Kunlun Mining Steel-Belt Overall Dimensions (L*W*H): 6.4*2.5*2.46 m |
| Payload Capacity: 20 Tons(Pointed-Nose) | Payload Capacity: 25 Tons(Pointed-Nose) |
| Engine: Yuchai YC6L290-33 Transmission: 10JS120 Axle: Beifang Benz Planetary Reduction Tires: 1000R20 Kunlun Mining Steel-Belt Overall Dimensions (L*W*H): 7.45*2.5*2.73 m |
Engine: Yuchai YC6L340-33, 243 kW Transmission: Shaanxi Fast 10JSD220 Axle: Hande 20T, Tandem Rear with Air Brake Tires: 1000R20 Kunlun Mining Steel-Belt Overall Dimensions (L*W*H): 7.9*2.5*2.72 m |
| Payload Capacity: 35 Tons(Flat-Nose) | Payload Capacity: 35 Tons(Pointed-Nose) |
| Engine: Yuchai YC6MK375-T300 Transmission: Shaanxi Fast 10JS220 Axle: Hande Tandem Rear 20T Tires: 12.00R20 Overall Dimensions (L*W*H): 7.748*2.5*2.7 m |
Engine: Yuchai 420 HP, 276 kW @ 2100 rpm Transmission: Shaanxi Fast 10JSD220 Axle: Hande 20T, Tandem Rear with Air Brake Tires: 12.00R20 Kunlun Mining Steel-Belt Overall Dimensions (L*W*H): 8.664*2.5*2.819 m |
Tracked Dump Truck Specifications
| Payload Capacity: 0.5 Ton | Payload Capacity: 0.8 Ton |
|---|---|
| Cargo Box: 800×700×400 mm Engine: Kaibao 170F Gasoline, 7.5 HP Transmission: Homemade, 2 Forward + 1 Reverse Tracks: 150×60×37 mm Chassis Width: 70 cm |
Cargo Box: 800×700×400 mm Engine: Jima 173F, 5 HP Transmission: Homemade, 3 Forward + 1 Reverse, High/Low Speed Tracks: Steel-Rubber 150×60×37 mm Chassis Width: 70 cm |
| Payload Capacity: 1 Ton | Payload Capacity: 2 Tons (Walk-behind) |
| Dimensions: 2050×800×1130 mm Cargo Box: 1200×750×450 mm (0.405 m³) Engine: Xingpu 186F, 9 HP / 6.6 kW Transmission: Guli 13, 3 Forward + 1 Reverse Tracks: Steel-Rubber 180×72×38 mm Chassis Width: 80 cm |
Dimensions: 2480×1170×1260 mm Cargo Box: 1300×1100×500 mm (0.7 m³) Engine: Kepu 192F, 12.24 HP / 9 kW Transmission: Guli 18, 3 Forward + 1 Reverse Tracks: Steel-Rubber 230×72×46 mm Chassis Width: 100 cm |
| Payload Capacity: 2 Tons (Ride-on) | Payload Capacity: 3Tons |
| Dimensions: 2800×1200×1500 mm Cargo Box: 1600×1200×500 mm (0.96 m³) Engine: Changchai ZS1105M, 18.14 HP / 13.34 kW Transmission: Guli 18, 3 Forward + 1 Reverse Tracks: Steel-Rubber 230×72×56 mm Chassis Width: 120 cm |
Dimensions: 3180×1450×1500 mm Cargo Box: 1900×1400×500 mm (1.33 m³) Engine: Changchai L25M, 21.44 HP / 16 kW Transmission: Guli 21, 3 Forward + 1 Reverse, High/Low Speed Tracks: Steel-Rubber 230×72×56 mm Chassis Width: 145 cm |
| Payload Capacity: 3 Tons Plus | Payload Capacity: 4 Tons |
| Dimensions: 3300×1550×1500 mm Cargo Box: 2100×1500×500 mm (1.575 m³) Engine: Changchai L32M, 30.1 HP / 22.12 kW Transmission: Guli 21, 3 Forward + 1 Reverse, High/Low Speed Tracks: Steel-Rubber 350×90×56 mm Chassis Width: 155 cm |
Dimensions: 3480×1650×2050 mm Cargo Box: 2200×1500×600 mm (1.98 m³) Engine: Weichai Jiaxin 490Y4-2, 57.12 HP / 42 kW Transmission: Guli 21, 3 Forward + 1 Reverse, High/Low Speed Tracks: Engineering Rubber 320×90×56 mm Chassis Width: 151 cm |
| Payload Capacity: 5 Tons | Payload Capacity: 6 Tons |
| Dimensions: 3500×1700×2050 mm Cargo Box: 2200×1500×600 mm (1.98 m³) Engine: Weichai Jiaxin 4105, 92.48 HP / 68 kW Transmission: Guli 23, 3 Forward + 1 Reverse, High/Low Speed Tracks: Engineering Rubber 320×90×56 mm Chassis Width: 151 cm |
Dimensions: 3700×1700×2080 mm Cargo Box: 2400×1500×600 mm (2.16 m³) Engine: Weichai Jiaxin 4105, 92.48 HP / 68 kW Transmission: Guli 29, 3 Forward + 1 Reverse, High/Low Speed Tracks: Engineering Rubber 320×90×56 mm Chassis Width: 151 cm |
| Payload Capacity: 8 Tons | Payload Capacity: 10 Tons |
| Dimensions: 4030×2060×2300 mm Cargo Box: 2700×2000×550 mm (2.97 m³) Engine: Weichai Jiaxin 4105, 92.48 HP / 68 kW Transmission: Dongfeng 145, 5+1 Gears Tracks: Engineering Rubber 400×90×70 mm Chassis Width: 220 cm |
Dimensions: 4300×2200×2350 mm Cargo Box: 2800×2000×600 mm (3.36 m³) Engine: Yuchai Turbo 4102, 110 HP / 80 kW Transmission: Wanliyang 545, 5+1 Gears Tracks: Engineering Rubber 450×90×70 mm Chassis Width: 220 cm |
| Payload Capacity: 12 Tons | |
| Dimensions: 4450×2200×2350 mm Cargo Box: 3000×2000×700 mm (4.2 m³) Engine: Yuchai Intercooled Turbo 4108, 160 HP / 118 kW Transmission: Wanliyang 545, 5+1 Gears Tracks: Engineering Rubber 450×90×82 mm Chassis Width: 220 cm |
03 Why Choose Our Mining Dump Trucks?
BackOur Mining Dump Trucks offer exceptional transport capability, quickly moving ores from excavation sites to designated locations. With a balanced load capacity, they meet daily mining transport needs while avoiding operational difficulties and increased costs associated with larger vehicles. Additionally, these trucks are designed for easy maintenance and durability, helping reduce operational costs for mining companies.
Our company has over 10 years of experience in manufacturing mining dump trucks, with products sold in more than 90 countries and regions. If you are interested in our mining dump trucks, please contact us for quotation.
