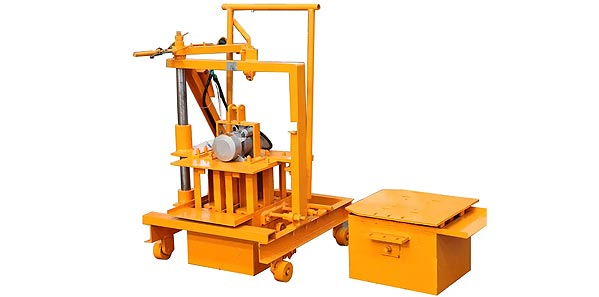

QMY2-45 Egg Laying Brick Machine

The QMY2-45 Egg Laying Brick Machine is a compact, highly portable concrete block machine. With its egg laying design, it produces bricks and blocks directly on the ground without the need for pallets. This makes it especially suitable for small-scale production, home use, and remote job sites.

Compact Size & Portable Design
The QMY2-45 egg laying block machine occupies only about 1 cubic meter. It can be easily transported even by a small car, saving space and reducing transportation costs.

Pallet-Free Operation
No pallets required. Blocks are molded directly on the ground, reducing material costs and simplifying the production process.

Dual Vibrators for High Quality Blocks
Equipped with two strong vibration motors to ensure good block density, smooth surfaces, and precise sizes.

Flexible Movement
The machine is equipped with durable wheels, allowing easy relocation and operation at different sites.

Simple & Manual Operation
The QMY2-45 mobile brick machine uses a manual handle to control the mold and vibration switch, making it easy to operate without special training.

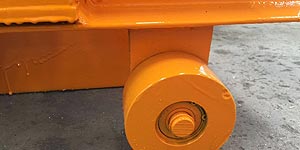

Flexible wheels to control the machine’s advance

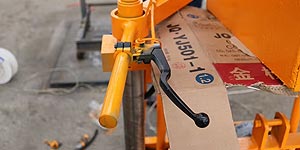

	Easy to operate starting handle

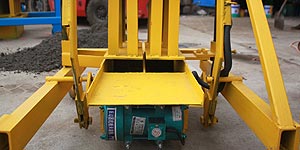

Enough power motor to support

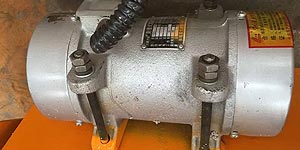

	The production of masonry

Lightweight and easy to move.
Operates without pallets, saving production cost.
User-friendly, no skilled labor required.
Low power consumption and energy saving.
High efficiency with stable performance.
Ideal for small investors and startup block factories.

1. Manually fill the mold with prepared materials.
2. Pull the operating handle to lower the upper mold.
3. Switch on vibration to form the block.
4. Move the QMY2-45 egg laying block machine forward to the next position.
5. Repeat the cycle for continuous production.

Main Technical Parameter
Dimension of host machine	1.04*0.76*1.33m	Total machine power	1.5KW
Mould period	40S	Pallet size	No need
Mould weight	60KG	weight	200kg
