QT12-15 Concrete Brick Machine

Ideal for large-scale production, the QT12-15 Concrete Brick Machine offers a reliable solution for manufacturers seeking efficiency, quality, and flexibility in their brick production process.

Materials: Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
Application: Widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.

Leave Message Whatsapp Chat

60s online
customer service

2 days customize
solutions

Factory
visiting anytime

1-10 days dispatch
the goods

One week
of installation

2 days of
training

365 days
after-sales online

Project tracking
regularly

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

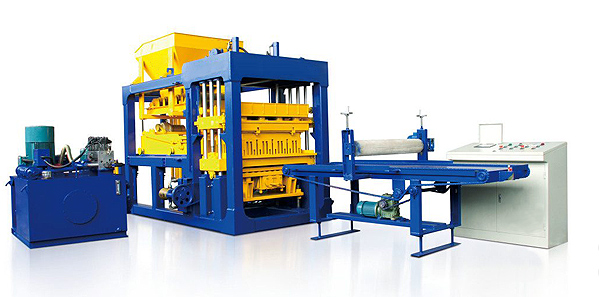

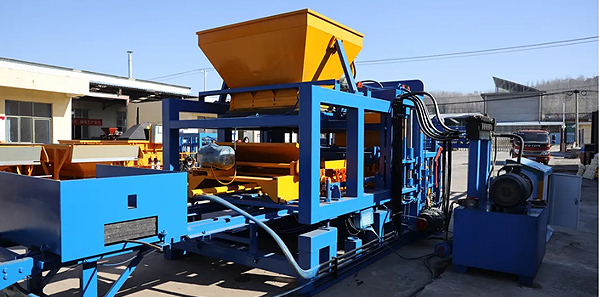

QT12-15 Concrete Brick Machine is a high-efficiency, fully automatic equipment designed for large-scale production of concrete blocks and bricks. Featuring advanced vibration technology and a robust hydraulic system, this machine delivers exceptional output and product quality. With its 12-station molding system, it can produce a wide range of products, including solid blocks, hollow blocks, paving stones, and decorative bricks, suitable for various construction and landscaping applications.

01 Technical Specifications of QT12-15 Concrete Brick Machine

Back

Overall Dimension	9350x2520x2950mm
Rated pressure	21MPa
Main vibration form	Platform vibration
Cycle Time	15-25 seconds
Vibrating Frequency	2800-4500 rolls/minute
Pallet Size	1350x900mm
Motors Power	70.5kw
Weight	12500kg

02 Advantages of QT12-15 Automatic Brick Making Machine

Back

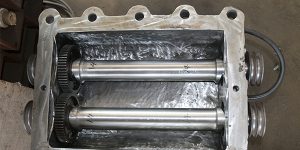

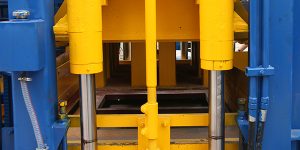

ENLARGE THE VIBRATING BOX The vibrating source is uniform and stronger.

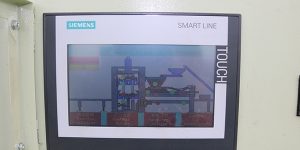

	SIEMENS PLC International brand, long service life, basically not damaged.

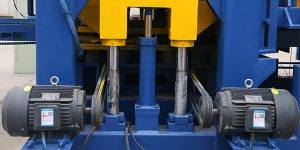

4 SIEMENS VIBRATION MOTORS fast start, high frequency, strong vibration force, make good brick quality.

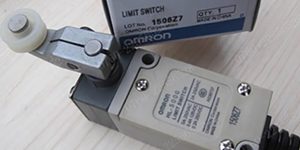

	SCHNEIDER, OMRON ELECTRICAL DEVICES Interval pressure supply, each action is fast and smooth.

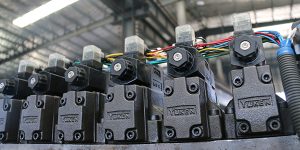

JAPAN YUKEN HYDRAULIC VALVE / PROPORTIONAL VALVE Fast response, long life..

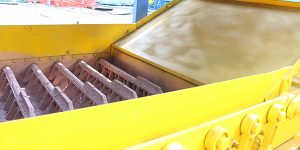

	MATERIAL FEEDER V-shaped feeding tooth, uniform feeding, 0 failure rate.

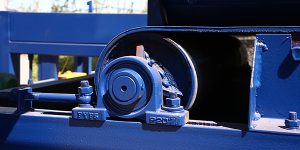

MATERIAL HOPPER Adopt endless belt, uniform, more accurate discharge volume.
	GUIDE SHAFT 40R chrome-plated layer, wear-resistant, extremely long life.

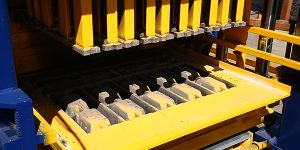

BLOCK MOULD Manganese steel material, CNC cutting, carburizing treatment, high strength, wear resistance, life increased by 50%. the best choice.

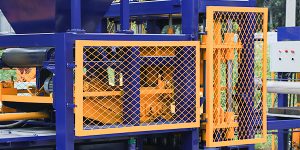

	GUARD NET Ensure the safety of workers, good-looking appearance.

03 QT12-15 Production Capacity

Back

Block type	Image	Size (mm) LWH	Molding cycle	QTY (pcs)/Mould	Qty(pcs)/hour	Qty(pcs)/8hr
Hollow block		400x200x200	15-20	12	2160-2880	17280-23040
Hollow block		400x150x200	15-20	16	2880-3840	23040-30720
Solid block		240x110x70	15-17	50	10588-12000	84704-96000
Paver		225×112.5×60	15-25	27	4860-3888	38880-31104
Paver		200x100x60	15-25	44	6336-10560	50688-84480

04 Why Choose the QT12-15 Concrete Brick Machine?

Back

✅ High Efficiency & Productivity: With advanced hydraulic technology, it offers fast production speed, ensuring high output and consistent brick quality.
✅ Durability & Precision: The machine produces bricks with excellent density and strength, ideal for large-scale construction projects.
✅ Automation & Cost Savings: High automation reduces labor costs while improving production efficiency, making it a cost-effective solution.
✅ Energy Efficient: Designed to minimize energy consumption, it helps meet modern environmental standards.
