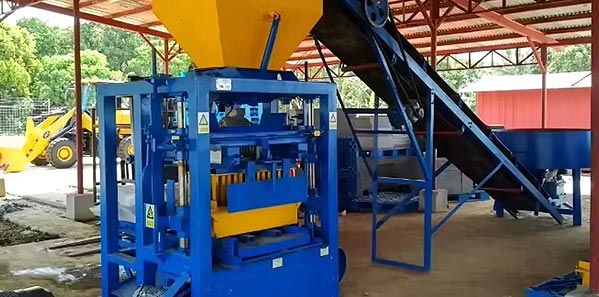

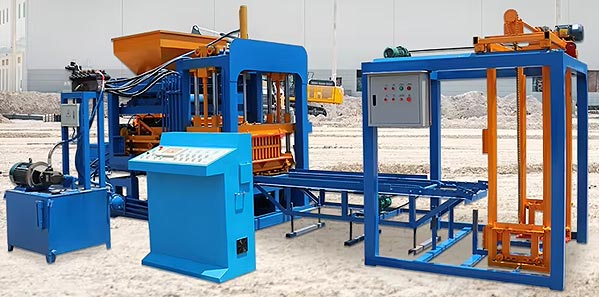

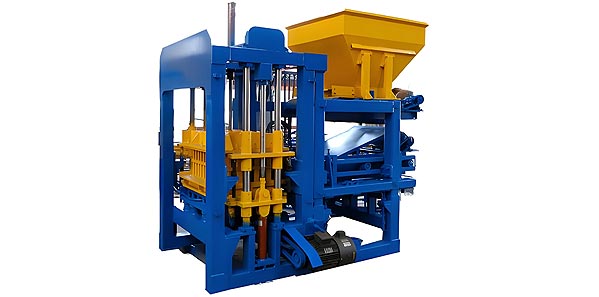

QT4-15 Brick Machine

The QT4-15 block forming machine is a newly upgraded model based on customer feedback, ideal for producing high-strength eco-friendly bricks, interlocking blocks, and grass pavers. It features hydraulic drive, double-layer feeding, strong vibration compaction, and automatic operation with high density. A unique mixing cart ensures forced material feeding, effectively solving feeding challenges for multi-hole bricks.

Overall Dimension	3700x2300x2700mm
Rated pressure	16MPa
Main vibration form	Platform vibration
Cycle Time	15-25 seconds
Vibrating Frequency	2800-4000 rolls/minute
Pallet Size	880x580mm
Motors Power	24kw
Weight	4500kg

ENLARGE THE VIBRATING BOX The vibrating source is uniform and stronger.
	SIEMENS PLC International brand, long service life, basically not damaged.
SIEMENS MOTOR Strong power and long service life.
	SCHNEIDER, OMRON ELECTRICAL DEVICES Interval pressure supply, each action is fast and smooth.
JAPAN YUKEN HYDRAULIC VALVE / PROPORTIONAL VALVE Fast response, long life..
	GUARD NET Ensure the safety of workers, good-looking appearance.

Block type	Image	Size (mm) L*W*H	Molding cycle	QTY (pcs)/Mould	Qty(pcs)/hour	Qty(pcs)/8hr
Hollow block		400x200x200	15-20	4	720-960	5760-7680
Hollow block		400x150x200	15-20	5	900-1200	7200-9600
Solid block		240x110x70	15-20	20	3600-4800	28800-38400
Paver		225×112.5×60	15-20	12	1728-2880	13824-23040
Paver		200x100x60	15-25	14	2016-3360	16128-26880

✅ High Efficiency and Stability — QT4-15 uses advanced hydraulic and vibration systems to ensure consistent product quality and high production output.
✅ Flexible Production — By changing molds, it can produce various types of blocks, including hollow blocks, solid bricks, pavers, and curbstones.
✅ User-Friendly and Durable — Equipped with PLC control, easy to operate and maintain, with robust construction ensuring long-term reliable performance.
