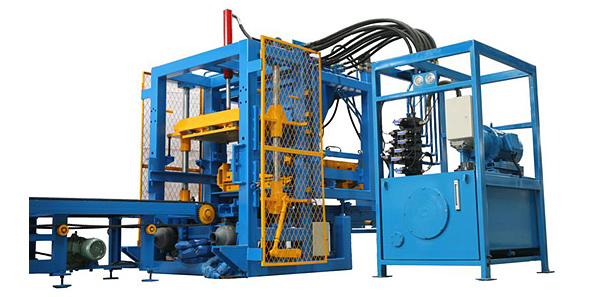

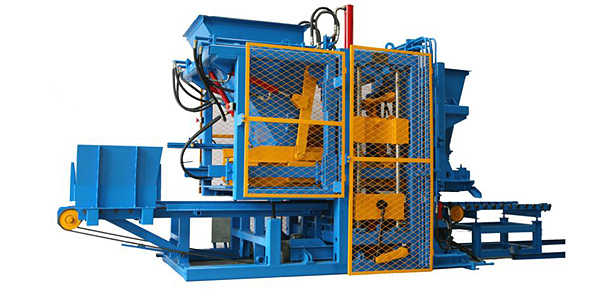

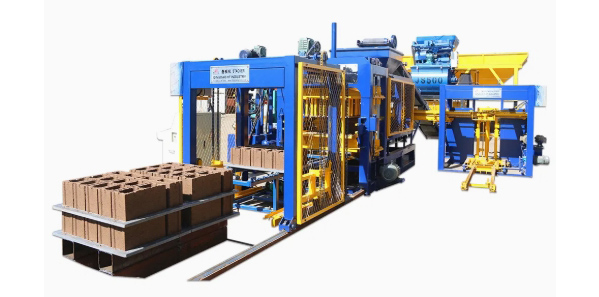

QT6-15 Block Machine

QT6-15 Block Machine is a new generation of fully automatic multifunctional equipment, developed through optimized design based on advanced international technology. It is ideal for producing block bricks, hollow blocks, curbstones, and slope protection bricks, featuring intelligent control, high output, and energy efficiency—making it a key component of modern building material production lines.

Overall Dimension	7100x1500x3000mm
Rated pressure	16MPa
Main vibration form	Platform vibration
Cycle Time	15-25 seconds
Pallet Size	900x680mm
Motors Power	28.75kw
Weight	6200kg

ENLARGE THE VIBRATING BOX The vibrating source is uniform and stronger.
	SIEMENS PLC International brand, long service life, basically not damaged.
SIEMENS MOTOR Strong power and long service life.
	SCHNEIDER, OMRON ELECTRICAL DEVICES Interval pressure supply, each action is fast and smooth.
JAPAN YUKEN HYDRAULIC VALVE / PROPORTIONAL VALVE Fast response, long life..
	GUARD NET Ensure the safety of workers, good-looking appearance.

Block type	Image	Size (mm) L*W*H	Molding cycle	QTY (pcs)/Mould	Qty(pcs)/hour	Qty(pcs)/8hr
Hollow block		400x200x200	15-20	6	1080-1440	8640-11520
Hollow block		400x150x200	15-20	8	1440-1900	11520-15200
Solid block		240x110x70	15-17	20	3600-4800	28800-38400
Paver		225×112.5×60	15-25	15	2160-2700	17280-21600
Paver		200x100x60	15-25	21	3000-3800	24000-30400

✅ Cost Saving – Compared to traditional sintering methods, it saves up to 90% in fuel costs and reduces labor demand by 50%.
✅ High Return on Investment – Achieve payback in just 6 to 8 months. The finished bricks can reach strength levels above MU15, offering strong market competitiveness.
✅ Sustainability – Supports the recycling of solid waste materials and complies with national “dual carbon” goals for carbon peak and neutrality.
