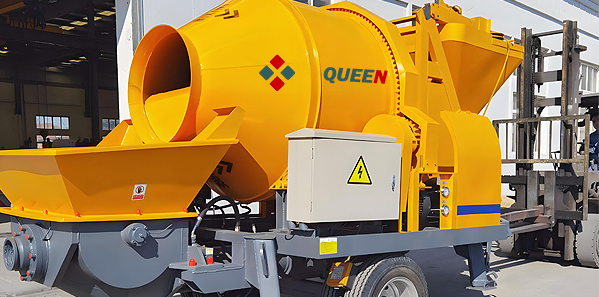

The Trailer Concrete Mixer with Pump is a compact, all-in-one machine that combines concrete mixing, feeding, and pumping into one system. It allows for on-site mixing and continuous pumping, which boosts construction efficiency. The machine is easy to operate, reliable, and highly mobile, making it perfect for a variety of construction projects.
This trailer concrete mixer with pump is suitable for conveying large-aggregate concrete used in foundation piling and other applications, including:
1. Residential building construction
2. Tunnel projects for highways and railways
3. Water conservancy and hydropower engineering
4. Geohazard slope treatment
5. Foundation irrigation and other projects with high concrete volume or limited space
1. Two-in-One Functionality: Combines concrete mixing and pumping in one unit, reducing procurement costs.
2. On-Site Mixing with Continuous Pumping: Offers 4–6 times higher efficiency compared to traditional stationary mixers and pumps, boosting productivity and accelerating project progress.
3. Labor-Saving Operation: What used to require two separate processes now only needs one operator. Easy to use with a high level of mechanization, reducing labor costs.
4. Highly Mobile and Flexible: Easy to move and highly maneuverable, making it ideal for rotating operations across multiple job sites.
| Parts Name/Parameters | Parts Specification | ||||
| Models | HBT15 | DHBT15E | DHBT15 | DHBT15 PRO | |
| Power | Power supply model | Electric Motor | Diesel engine | Diesel engine | Diesel engine |
| Electric Component | Siemens/Schneider/Omron | ||||
| Mixing System | Mixer | JZM450 drum mixer, 750L charging hopper, 450L concrete output per batch | |||
| Mixing Motor | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |
| Hoist Motor | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |
| Submersible Pump | 0.75kW | 0.75kW | 0.75kW | ||
| Max. Theoretical Mixing Output | 18-22m³/h | ||||
| Pumping System | Main Motor | 45kW, electric motor | 52kW, Weichai diesel engine | 62kW, Weichai diesel engine | 92kW, Weichai diesel engine |
| Motor Rated Speed | 1480 RPM | 1800 RPM | 1800 RPM | 1800 RPM | |
| Mian Hydraulic Oil Pump | KAWASAKI K3V112 | Domestic brand K3V80 | KAWASAKI K3V112 | KAWASAKI K3V140 | |
| Double Gear Pump | 25&16 | ||||
| Valves | overflow and directional valves, OM/HUADE, Italy brand/China brand | ||||
| Main Oil Cylinder | Φ100*Φ70*1000mm | ||||
| Delivery Cylinder | Φ200*1000mm | ||||
| S Valve | Φ200mm | ||||
| Cutting Ring | Φ200mm | ||||
| Glass Wear Plate | Φ200mm | ||||
| Max. Theoretical Pumping Output | 40m³/h | ||||
| Outlet Pressure | 10Mpa | 6Mpa | 8Mpa | 10Mpa | |
| Hydraulic System Type | Open circuit | ||||
| Motor Rated Voltage | 380V, 3P | Diesel engine | Diesel engine | Diesel engine | |
| Max. Aggregate Size | Pebble:40mm Aggregate:30mm | ||||
| Delivery height and horizontal distance | 70m/300m | ||||
| Hydraulic Oil Tank Volume | 200L | ||||
| Concrete Outlet Diameter | Φ180mm | ||||
| Hopper Capacity × Filling Height | 600*1400 (L*mm) | ||||
| Machine Size(LxWxH) | 5100*2200*2450 mm | ||||
| Total Weight | 5600kgs | 5300kgs | 5600kgs | 5800kgs | |
| Tyre Size | 700R16 | ||||
| Towing Speed | Max. 8km/h | ||||
The price of the concrete mixing and pumping all-in-one machine depends on several factors. Key considerations include:
1. Power Type
Diesel versions are more expensive due to their powerful engines, suitable for areas with unstable electricity. Electric versions are more affordable and eco-friendly, ideal for regions with stable power.
2. Model and Capacity
Larger mixing capacity and higher pumping pressure increase the price. Larger, more efficient machines are priced higher, suited for large-scale projects.
3. Brand and Manufacturer
Renowned brands offer better quality, support, and service but at a higher price. Smaller or emerging brands may be more affordable but could have slightly lower quality or service.
4. Configuration and Features
Additional features like automation, high-pressure pumps, and remote controls increase the price.
We manufacture a wide range of concrete mixing and pumping all-in-one machines, with varying models and specifications, resulting in different prices. For detailed price, please contact us.
