Trailer Concrete Pump

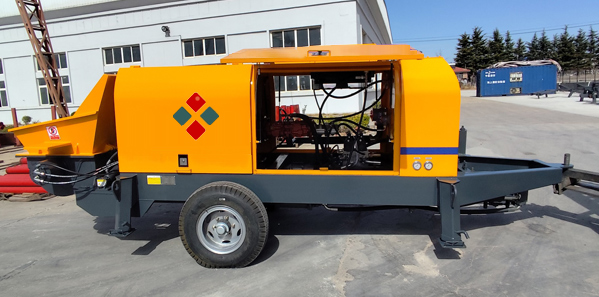

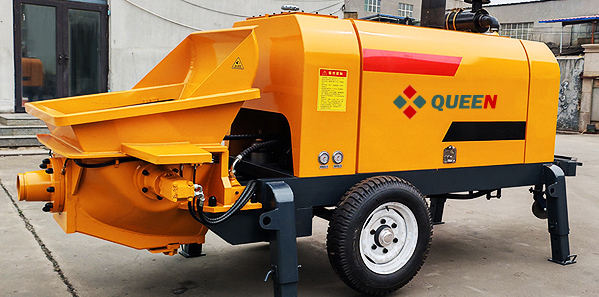

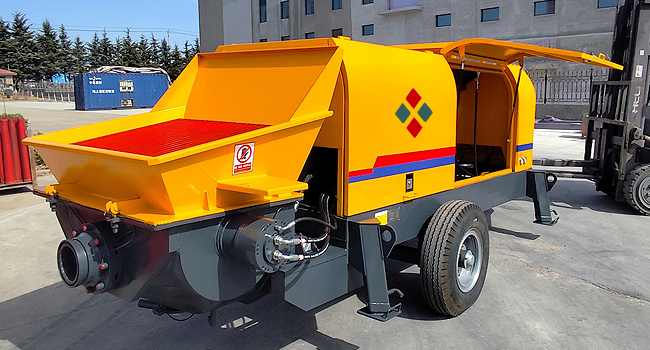

Trailer Concrete Pump is a type of concrete conveying equipment that uses hydraulic pressure to continuously transport concrete through pipelines. Mounted on a wheeled chassis, it can be easily towed by vehicles to various construction sites. It is widely used in residential buildings, highways, tunnels, and other infrastructure projects.

Powerful Pumping Capability: Can transport concrete hundreds of meters horizontally and dozens of meters vertically.
Compact and Portable: Designed for ease of mobility in narrow or hard-to-reach construction areas.
Durable Components: Uses wear-resistant materials in key parts such as S-valves and delivery cylinders to ensure long service life.
Flexible Power Options: Available in electric and diesel-powered models to suit different site conditions.
Wide Range of Applications: Compatible with various grades of concrete, mortar, and fine stone aggregate.

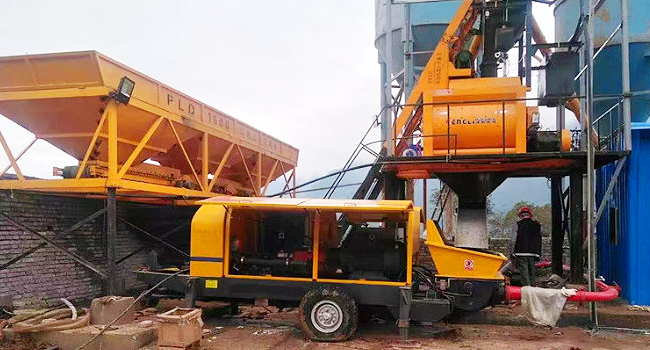

Trailer concrete pumps are widely used in:
Residential housing and small commercial buildings
High-rise and skyscraper construction (with vertical piping)
Infrastructure projects such as roads, bridges, tunnels
Irrigation, mining, and energy sector projects
Precast component factories for efficient concrete placement

Electromotor concrete pumps:

Item		Unit	S Valve Concrete Pump
			HBT30	HBT40	HBT50	HBT60	HBT80
Theoretic Concrete Delivery Volume	Low Pressure	M3/H	30	40	50	60	80
	High Pressure	M3/H	/	/	23	36	48
Concrete Delivery Pressure	Low Pressure	MPa	/	/	5.8	6.3	8.3
	High Pressure	MPa	10	10	12	13	16
Hydraulic Pressure		MPa	25	28	28	28	28
Electric Motor Speed		R/Min	1480
Main Hydraulic Pump	JINDA	Kawasaki
Main Cylinder Dia./Pole Dia. x Stroke		Mm	Φ 80/55 x 845	Φ 100/70 x 1100	Φ 110/70 x 1300	Φ 120/80 x 1650	Φ 140/90 x 1800
Diameter Of Delivery Cylinder		Mm	140	160/180	180	200	200
Electric Motor Power		KW	37	45	55	90	110
Capacity Of Hydraulic Oil Tank		L	200	370	370	560	560
Hopper Capacity		M3	0.4		0.55	0.6
Overall Weight		Kg	2300	3500	3600	5000	5600
Max. Delivery Distance	Vertical	M	100	160	160	160	160
	Horizontal	M	300	500	500	800	1000

Diesel engine concrete pumps:

Item	Unit	DHBT30	DHBT40	DHBT50	DHBT60	DHBT80	DHBT90
Theoretical Capacity	M³/H	30	40	50	60	80	90
Delivery Pressure	Mpa	10	10	10	13	16	22
Max. Pump Times	Times/Min	24	20	22	22	23	23
Delivery Height	M	120	120	120	180	180	350
Delivery Distance	M	500	500	500	600	1000	1500
Distribution Valve Type		S Tube Valve	S Tube Valve	S Tube Valve	S Tube Valve	S Tube Valve	S Tube Valve
Delivery Cylinder Type	Mm	Φ140×1200	Φ180×1300	Φ180×1300	Φ200×1650	Φ200×1650	Φ200×1800
Main Oil Pump	Mm	Φ80/55×1200	Φ100/70×1300	Φ110/70×1300	Φ125/80×1650	Φ125/Φ80×1650	Φ125/Φ80×1650
Oil Tank Capacity	L	260	370	370	560	560	560
Hopper Capacity	L	400	400	400	800	800	800
Filling Height	Mm	1100	1100	1100	1400	1400	1400
Outlet Diameter	Mm	Φ125	Φ150	Φ150	Φ180	Φ180	Φ200
Delivery Pipe Inner Diameter	Mm	Φ125/Φ100	Φ125	Φ125	Φ125	Φ125	Φ125
Engine Power	Kw	56	82	82	129	129/145	199
Rated Spped	R/Min	2200	2200	2300	2300	2300	2300
Idling Speed	R/Min	800	800	800	800	800	800
Voltage	V	24V	24V	24V	24V	24V	24V
Fuel Tank	L	150	150	150	150	150	150
Hydraulic Oil-Way Type		Open	Open	Open	Open	Open	Open
Max. Oil Pressure	MPa	26	31.5	31.5	31.5	31.5	31.5
Max. Oil Pressure For Mixing System	MPa	6-8	6-8	6-8	6-8	6-8	6-8
Max. Mixing Speed	R/Min	24	24	24	24	24	24
Slump	Mm	80～200	80～200	80～200	80～200	80～200	80～200
Maximum Aggregate Size	Mm	≤30（≤20）	Aggregate 40	Pebble 50, Aggregate 40	Pebble 50, Aggregate 40	Pebble 50, Aggregate 40	Pebble 50, Aggregate 40
Overall Dimension	Mm	4970×1680 ×2580	5270×1860 ×2580	6600×1930 ×2190	6600×1930 ×2190	6600×1930 ×2190	6800×2100 ×2350
Wight	Kg	3500	4500	4500	6500	6800	7000
Towing Speed	Km/H	≤8	≤8	≤8	≤8	≤8	≤8

Note: the products are being updated constantly, all rights reserved by Queen Machinery.

When selecting a trailer concrete pump, consider the following factors:
1. Pumping Capacity: Measured in m³/h, choose based on your project’s daily concrete requirements.
2. Delivery Distance: Both horizontal and vertical pumping distances must match the site layout.
3. Power Type:
Diesel: Suitable for remote areas with no power supply.
Electric: Lower noise and emissions, suitable for urban projects with stable electricity.
4. Aggregate Size: Ensure the model supports the size and mix of concrete used on site.
5. Trailer Mobility: Check for rugged wheels, towing hooks, and chassis strength for transport convenience.
5. Maintenance and Parts: Choose a model with accessible service support and widely available spare parts.

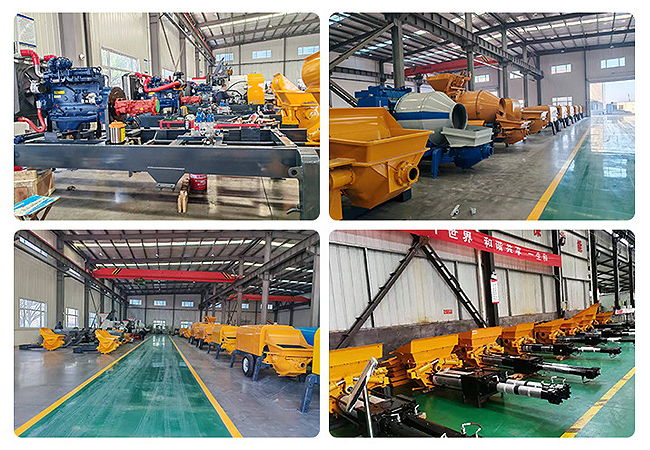

✅ Factory Direct Supply — No middlemen, competitive pricing
✅ Customizable Solutions — Tailored models based on your site and concrete needs
✅ On-Site Support — Technical training and after-sales service available globally
✅ Exported Worldwide — Trusted by customers in Southeast Asia, Africa, the Middle East, and South America
