Twin Shaft Concrete Mixer

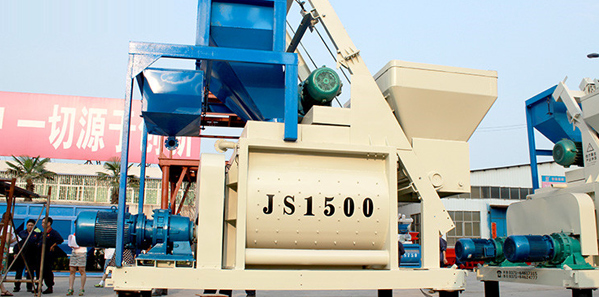

The Twin Shaft Concrete Mixer (also called JS concrete mixer) uses twin-shaft compulsory mixing technology and is an industrial machine with dual functions: independent operation and integration into a concrete batching plant system. It can be paired with the PLD series batching machines and is suitable for precast component production and construction projects such as roads and bridges.

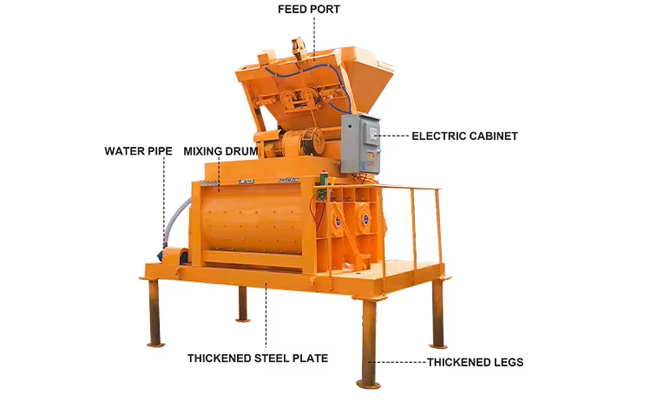

The Twin-shaft Compulsory Mixer is mainly composed of a mixing system, a feeding mechanism, a discharging device, a water supply system and an electrical system.

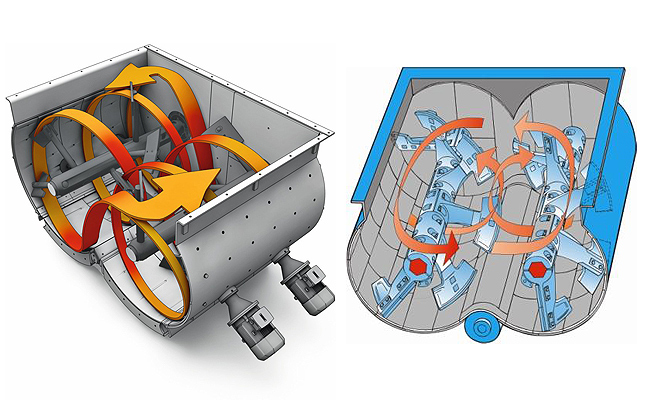

The motor drives the gearbox, transmitting power from the shaft to the mixer. The mixer is installed on the mixing shafts, and the blades rotate to evenly mix the materials. During the mixing process, the materials are subjected to shear forces from two directions, achieving the desired mixing effect.

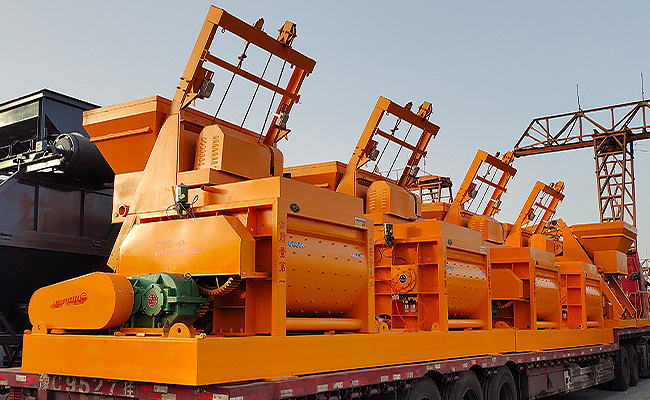

1. Good Mixing Performance: High mixing quality, achieving excellent mixing results.
2. High Production Efficiency: Fast mixing speed, ensuring high production efficiency.
3. Easy Maintenance: Simple maintenance with low maintenance costs.
4. Low Energy Consumption: Low energy consumption, making it energy-efficient and environmentally friendly.

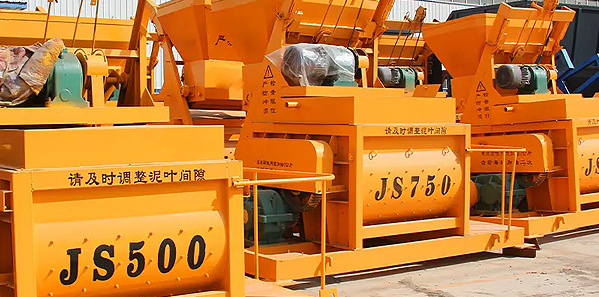

Model		JS500	JS750	JS1000	JS1500	JS2000	JS3000	JS3500	JS4000
Discharging Volume (L)		500L	750L	1000L	1500L	2000L	3000L	3500L	4000L
Feeding Volume (L)		800L	1200L	1600L	2400L	3200L	4800L	5600L	6400L
Capacity		≥25m³/H	≥37.5m³/H	≥50m³/H	≥75m³/H	≥100m³/H	≥150m³/H	≥180m³/H	≥200m³/H
Maximum Aggregate Size (Pebble/Gravel)Mm		40/50	40/60	60/80	80/100	80/100	80/120	80/120	80/120
Cycle Time (S)		72	72	60	60	60	60	60	60
Total Weight (Kgs)		4000	5500	8700	11300	15000	11450	12000	19000
Discharge Height (M)		3.8	3.8	3.8	3.8	3.8	3.8	3.8	3.8
Mixing Blade	Rotary Speed	35r/Min	26r/Min	29.6r/Min	24.5r/Min	24.5r/Min	21r/Min	21r/Min	21r/Min
	Quantity	2×7	2×8	2×8	2×8	2×10	2×10	2×11	2×12
Mixing Motor	Model	Y180M-4	Y200L-4	Y180M-4	Y225M-6	Y250M-6	Y280M-6	Y280M-6	Y315S-6
	Power	18.5kw	30kw	2×18.5kw	2x30kw	2X37kw	2X55kw	2X55kw	2X55kw
Hoist Motor	Model	YEZ1325-4-B5	YEZ132M-4-B5	YEZ160L-4	YEZ180L-4	YEJ180L-4	Y25M -4	Y25M -4	Y25M -4
	Power	5.5KW	7.5KW	15KW	18.5KW	22KW	2 x55 Kw	2 x55 Kw	2 x75 Kw
Pump Motor	Power	1.1KW	1.1KW	3KW	3KW	4KW	5KW	5KW	6KW
