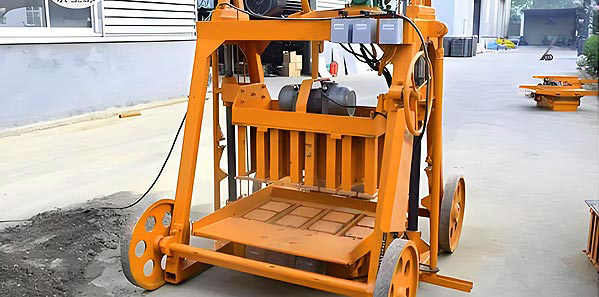

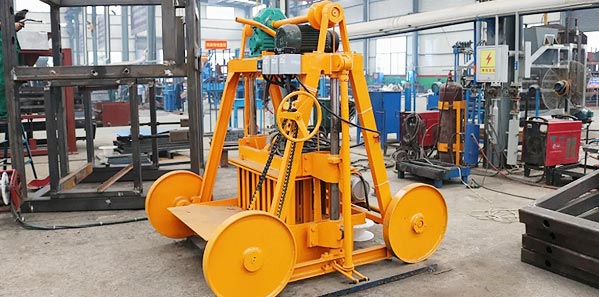

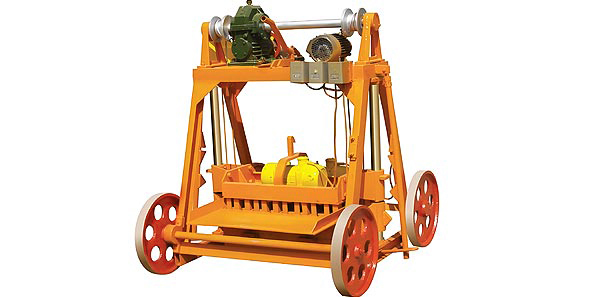

QMY4-45 Mobile Hollow Block Machine

QMY4-45 is our semi automatic movable block machine, it is mechanical design machine. With 4 big wheel for moving, this machine can make 4 pieces standard block 400x200x200mm one mold. By changing mold, this machine can make all type hollow block and solid block.

1. Multi- function
QMY4-45 manual egg laying mobile block molding machine can produce various blocks with different sizes and different shapes Interlocking by changing mould.
2. High production efficiency
It is an automatic mobile block making machine and the shaping cycle is 30-40s, so the production efficiency is very high. For example, for size 400*200*200mm, It can achieve 3000 pieces brick per shift (8 hours), production capacity varies according to size and types of brick.
3. Advanced technology
Vibration molding technology is adopted by this hollow brick making machine, so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.
4.High Quality Mould
The company adopts the most advanced cutting technology and heat treatment technology to ensure product quality and ensure customers’ ease

1.Manual block machine,two workers can produce,no need pallet, only on flat cement floor.

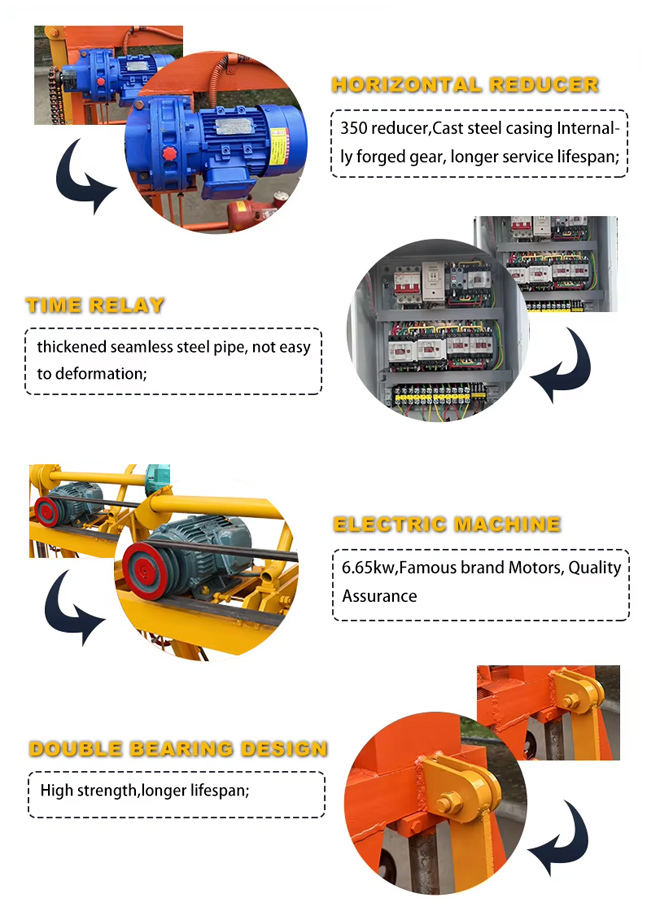

2.SIEMENS motor ,heated treated mould,firm and durable.
3.Manual brick machine can make block and soild block.
4.Less investment,more production.

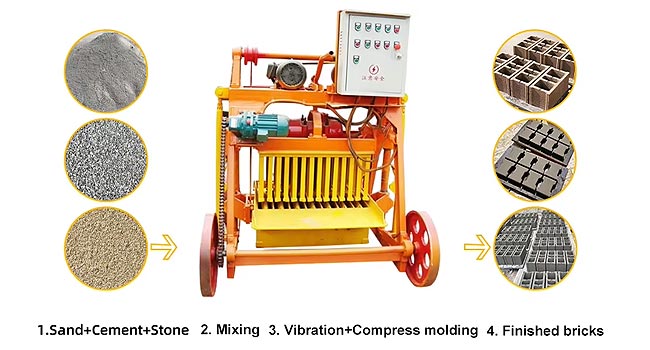

A: 10% cement, 30% sand and 60% small stone
B: 10% cement and 90% stone powder
C:10% cement, 30% fly ash and 60% stone powder

1 worker for mixing material
1 worker for caryying material to block machine
1 Worker for operation block machine

Overall Dimension	1650x1300x1400 mm
Voltage	220v-440v
Main vibration form	mold vibration
Cycle Time	45 seconds
Motors Power	6.65kw
Weight	1500kg

Block type	Image	Size (mm) L*W*H	Molding cycle	QTY (pcs)/Mould	Qty(pcs)/hour	Qty(pcs)/8hr
Hollow block		400x200x200	45	4	320	2560
Hollow block		400x150x200	45	5	400	3200
